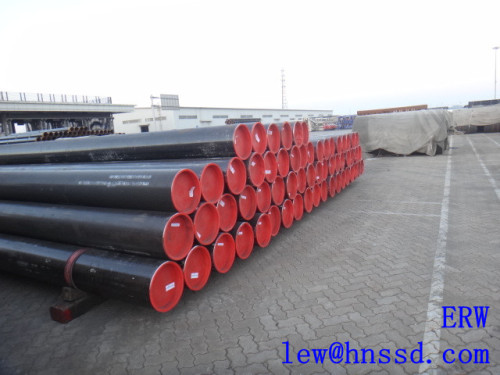

ERW STEEL PIPES (Electronic Resistance Welded Steel Pipe)

Usage: Used for low pressure liquid delivery, such as water, gas, and oil.

Process:
ERW (Electric Resistance Welded)
HFI (High Frequency Induction)
EFW(ELECTRIC FUSION WELDED TUBE)

Specification:
ERW, HFI, EFW:
Outer Diameter: 6mm-610mm (1/16"-24")
Wall Thickness: 0.3mm-22mm
Length: 0.5mtr-20mtr, Random Length

Quality Standard & Steel Grade:
BS:1387, EN10217:S185, S235,S235JR, S235 G2H, S275, S275JR, S355JRH, S355J2H, St12, St13, St14, St33, St37, St44, ST52
ASTM A 53: Gr. A, Gr. B, Gr. C, Gr. D
API 5L: A, B, X42, X46, X52, X56, X60, X65 X70
GB/T9711: L175, L210, L245, L290, L320, L360, L290, L320, L360, L390, L415, L450, L485, L555
GB/T3091, SY/T5037, SY/T 5040,CJ/T 3022:Q195, Q215, Q235, Q275, Q295, Q345, 08F, 08, 08AL, 08F, 10F, 10, HG5, DF08 SPHC, M8


Condition of Delivery:

End: square ends (straight cut, saw cut, and torch cut). or beveled for welding, beveled,
Surface: Lightly oiled, Hot dip galvanized, Electro galvanized, Black, Bare, Varnish coating/Anti rust oil, Protective Coatings (Coal Tar Epoxy,? Fusion Bond Epoxy, 3-layers PE)
Test: Chemical Component Analysis, Mechanical Properties (Ultimate tensile strength, Yield strength, Elongation), Technical Properties (Flattening Test, Bending Test, Blow Test, Impact Test), Exterior Size Inspection, Hydrostatic Test, X-ray Test.
Mill Test Certificate: EN 10204/3.1B
Third party inspection: SGS, BV, Lloyds etc.

Other Trade Information:

Ms. Lew Chen

0086+15116183027

lewAThnssd.com

Hunan Great Steel Pipe Co., Ltd.
